Name :N Female Clamp-on Type Panel Mount 4 Holes Item No. : 2226-A1-N1TG1 2226-F1-N1TG1  Feature :               A1:RG-58/U,141/U                                     F1:RG-59/U,62/U,210/U               N1:Brass Body With Nickel Plating                T:Teflon Insulation              G1:Brass Pin With Gold Plating                             Add to Inquiry Cart

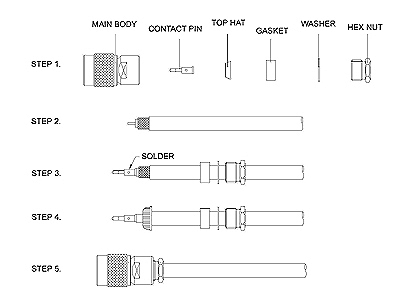

INSTRUCTIONS FOR CABLE ASSEMBLY – CLAMP/SOLDER

STEP 1. Shown are diff. parts of the connector.

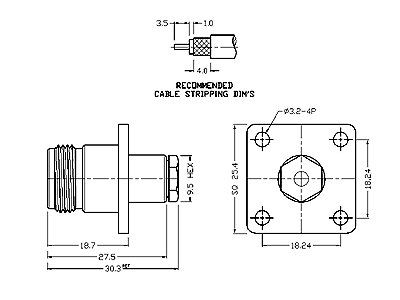

STEP 2. First, strip the inner conductor, dielectric, and jacket. Be sure to remove all Burrs and break

             sharp edges in stripping the Cable Dims.

STEP 3. Insert inner conductor into the Contact Pin and solder it as shown. Then slide the Hex Nut,

             Washer, and Gasket onto the Cable one by one.

STEP 4. Place the Top Hat over braid and push back against cable jacket, fold back braid wire as

             shown.

STEP 5. Insert cable and parts into the main body, then screw the Hex Nut until it is tightened.
