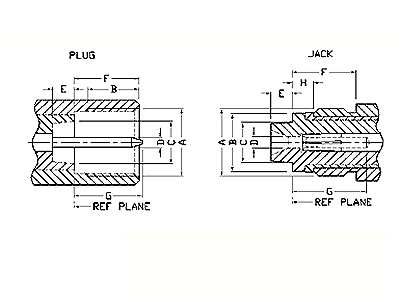

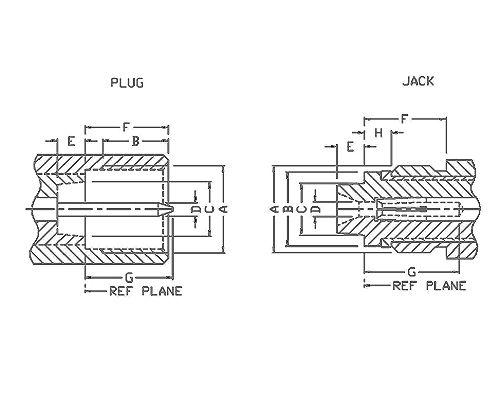

FME SERIES
FME, for mobile antenna applications, can be adapted for UHF, Mini-UHF, TNC, BNC and type N connector interfaces using adapters.
| |
FME-PLUG |
FME-JACK |
| |
Min |
Max |
Min |
Max |
| A |
M8*0.75-6H |
M8*0.75-6g |
| B |
5.60 |
- |
- |
7.00 |
| C |
4.80 |
- |
- |
4.80 |
| D |
1.17 |
1.23 |
1.30 |
- |
| E |
2.50 |
- |
- |
2.50 |
| F |
7.55 |
7.65 |
8.00 |
- |
| G |
- |
8.00 |
8.00 |
- |
| H |
- |
- |
2.20 |
- |
|
Material |
|
Part Name |
Material |
Finish |
|
Bodies |
Brass |
Nickel…
(per requirement) |
|
Center Contacts |
Male: Brass
Female: Brass,
Phosphor Bronze |
Gold ...
(per requirement) |
|
Crimp Ferrules |
Annealed Copper |
Same as Body |
|
Insulators |
Teflon, Delrin |
None |
|
Electrical Data |
|
Impedance |
50Ω |
|
Frequency Range |
DC-200 MHz |
|
)
