R/A SMB Male Crimp-on Type



ZOOM

Name :R/A SMB Male Crimp-on Type
Item No. : 1224-C1-G1+3TG3
1224-C6-G1+3TG3

Feature :
            C1:RG-174/U,188/U
            C6:RG-316/U
        G1+3:Brass, BeCu Boby With Gold Plating
              T:Teflon Insulation
            G3:BeCu Copper Pin With Gold Plating

Add to Inquiry Cart

圖片



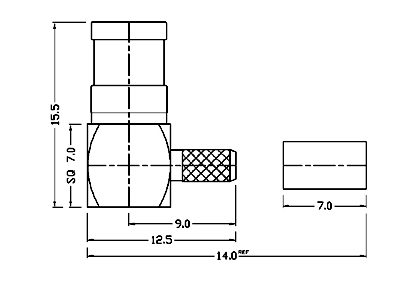

R/A SMB Male Crimp-on Type

Right Angle Crimp Type Connectors

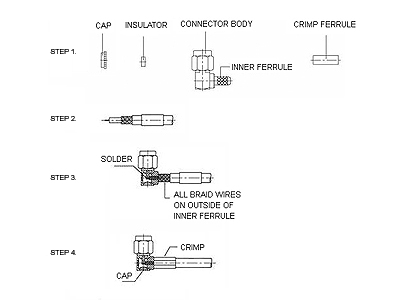

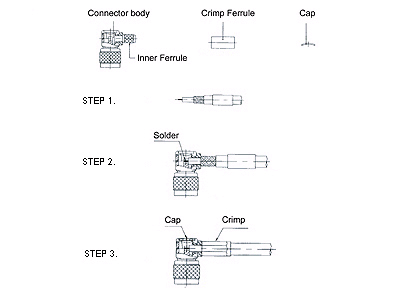

STEP 1. Slide crimp ferrule into the cable. Strip the cable as per recommended DIMS in catalogue.

STEP 2. Slightly flare the end of the cable braid for better insertion of the connector body. Insert the

              cable into the connector body with cable center conductor placed in center contact slot. All

              braids must be outside of inner ferrule. Solder center contact to cable center conductor.

STEP 3. Slice crimp ferrule forward until it touches with connector body then crimp it using a crimping

              tool.

STEP 4. Put the insulator into opening in rear of connector body then press cap on.
