Name :R/A MCX Male Direct Solder Attachment Item No. : 1115B-D1-G1TG1 1115B-D2-G1TG1 Feature :              D1:RG-402/U(.141")             D2:RG-405/U(.085")                          G1:Brass Body With Gold Plating                T:Teflon Insulation             G 1:Brass Pin With Gold Plating Add to Inquiry Cart

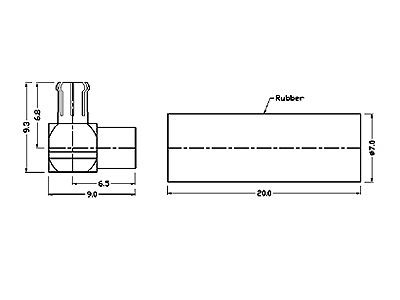

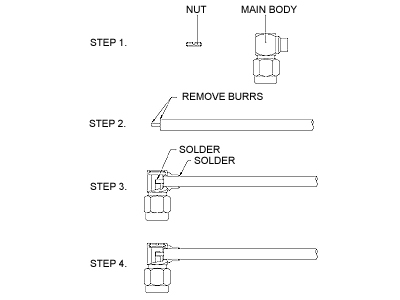

INSTRUCTIONS FOR CABLE ASSEMBLY – SOLDER ( SEMI-RIGID )



STEP 1. Shown are different parts of the Connector.

STEP 2. First thing to do is to strip the inner conductor, dielectric, and jacket. Be sure to remove all

             Burrs and break sharp edges in stripping the Cable Dims.

STEP 3. Solder inner conductor to the contact pin of Main Body, and solder cable jacket to the main

              body (please see the drawing).

STEP 4. Screw the Nut into the Main Body until its end.
